Fireplace Pans, Burners Continued

Search Our Site

Our products do not require any certification from the AGA, CSA or UL as it is considered a stand-alone product. We are told that we need certification if sand and or lava rock would need certification. The agencies are franchise operations and they are privately owned and they are not a government agency.

These agencies are hired for mass production testing and AGA, CSA and or UL do not certify custom one of a kind projects. Custom burners need no certification as this only applies to production equipment. Just so you can understand that a certification costs about $15,000.00 and certification was developed for production/ mass production to assure quality.

Any parts that would normally need AGA or UL do in fact have these approvals. Parts with function need and should have some sort of approval. The pan burners we sell that do have UL, CSA and or any other listings are produced by other companies.

The custom pan burners that we produce are just that, custom. Therefore do not require UL, CSA and or any other agency listings as these are custom. The parts that we use to build these pans are UL, CSA listed as they should be. We would never use any “Third World Country” or any unlisted, untested parts to build any products and or parts to endanger any product performance what so ever.

Ty Havas didn't want an ordinary Propane pan for his fireplace. He wanted a pan that would be more than functional. So after some sketches and discussions we began making a cardboard mock up.

He would ultimately recieve a Stainless Steel pan with angled legs and a 2 inch depth. Here the cardboard mock-up along with his firepalce measurments (which you can see denoted on the cardboard piece below the mock-up) assure that we attain the correct size and appropriate design.

The fireplace is emptied out and it becomes apparent that its in dire need of a fresh coat of paint. And since the custom pan was built with legs, the fireplace floor will be left visible and as a result fresh tile will be added to the hearth.

The fireplace re-design is complete with two custom reflective sterling silver panels on either side of the pan to give the illusion of the fireplace being larger.

The stainless steel pan is filled 1/4" Bronze, 1/4" Bronze Reflective, Copper Ruby Red, Yellowish Opal Orange, and Red Brown.

A wonderful transformation.

Ty Havas

The stainless steel pan burner below has a 24" stainless steel star burner installed and it is connected to our 110 volt electronic ignition. This is a propane burner.

We then covered it with our Starfire to test for soot and as you can see, a clean burn.

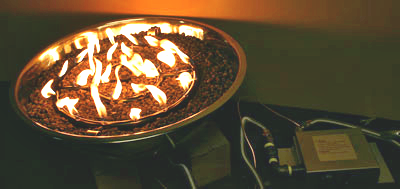

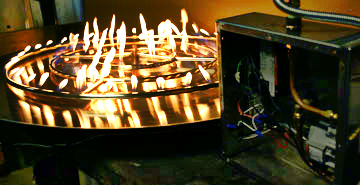

The pan below is a stainless steel pan with a 415,000 btu electronic ignition installed under the pan. It's what the customer wanted. It's like hooking your car up the the shuttle for more power. This pan was installed in Nipomo/ Pismo Beach California, Shea Homes and we get up there we will take finished pictures as we installed 6 other fireplace which we will take pictures of as well. The front stainless skirt hide the control box which is 4" tall.

The stainless steel pan below has a 3/4" lip on top and it sits on 4" round brushed front legs.

The fireplace below is the fireplace of "Bill" and he wasn't sure where the burners went. So he put them on top and as you can see he should of put them under the glass. Bill ordered a rectangular pan and it would of looked better if we would of built a trapezoid shape pan to contour the fireplace. Bill did drop his burners under the glass. This was a propane ventless conversion. Looks much better than those log thingies! Hopefully Bill will send us pictures of it finished and burning, maybe. We used Starfire glass in the pan.
b

The fire pit below was build by Mike Phillips ( a customer). First he ran a propane line to the fire pit area and then blocked his fire pit into shape. We use a FPPK (fire pit propane kit) in an aluminum pan 24" x 24" with a double 18" double stainless steel ring.The glass that was used was Gray base with a Gray Reflective on top to add sparkle. Below you can see the placement of the thermo coupler and safety pilot light used for propane. Below on the right side the controls were installed in the bricks.

The pan below is a stainless steel pan made to the same size as the fireplace. We installed a front curtain to hide the controls. This is a propane ventless burner pan. We will post pictures when the customer sends them to us after the installation. We installed a 30" double burner in the middle. The maximum btu's on a ventless is 38,000 and any larger burner will make the flames much smaller. Below the customer wanted sculpted front legs.

Below you see the front curtain in stainless steel.

And here you have it burning with the glass.

The fireplace below was installed by George Foote who also built his own pan, great job! We supplied the burners and glass and George supplied the talent and labor. Great job George! The colors used were:

Starfire base glass,

Azurlite ,

Azurlite Reflective ,

Gray base glass,

and our Ice Ice Ice and you be the judge!

Before the pan and glass.

Here is the stainless steel pan that George built.
|

Start with Starfire. Add some Azurlite.

And the rest of the colors for one nice design from George!

The fireplace below had a steel pan built so we could conceal the 12 volt battery operated electronic ignition beneath the pan. The glass that was installed was:

Clear base glass under the Starfire base glass Topped with Amber Diamonds.

You can see the front plate that was painted to match which is removable if and when necessary to change the batteries. The legs were 4 1/2" and the pan was 2" tall. The removable front metal curtain was 6 1/2" tall.

Jim Malless 5

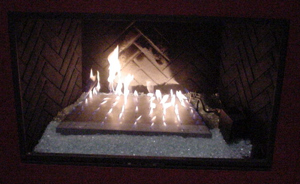

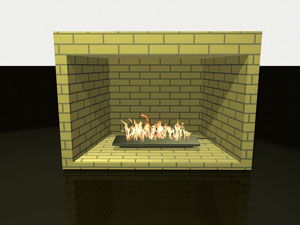

The pan below was created by John Webber of San Diego. He made a cardboard mock up of what he wanted in his fireplace and we duplicated it in stainless steel. Here is John's fireplace now, our pan and we will posts pictures of the finished fireplace with our pan when John sends them to us. The glass that was installed in this pictures of the pan is Pink Rosa base glass.

Pan For John 4

John ultimately decided on Starfire fireglass.

John Webber 1

Here is the custom burner pan installed.

The propane pan below has a brushed finish on the front metal shield. This is a two part shield, one to retain the fireplace glass and second to conceal the controls. This is part of the fireplace design that was asked for. The first pictures shows the front completely up.

The picture below shows the complete front dropped down to access the controls.

The burner below is a propane ribbon burner with all stainless steel construction.

The pan and all around was filled with glass hiding/ concealing all of the workings.

A ribbon burner will mold all of the flames together making it look like a ribbon of fire.

Below you will see how simple it is to convert/ install a propane into your table: This is our FPPK box with controls and air mixer calibrated to the burner we are using.

The burner on the top side with the thermo coupler, pilot light and battery operated ignitor exposed. Pour the filler lava / fireglass? and drink beer! Put a fork in it, You're done!

The next few pictures are from New York by Jai Crandall for Tom Morgan. We can hep transform an eye soar to a place of enjoyment. Just watch!

November 10, 2009

Hello Ed, my name is Jai Crandall and I live in central NY. I have a good friend (Tom Morgan) that has a patio that he generally uses wood to throw some heat for his quests when he entertains. Unfortunately, as I'm sure you know, the smoke can really get to you after a while. This is a very high end home and he entertains for some very important people. He would like to eliminate the wood a replace them with some propane inserts. It doesn't have to look like a fireplace, but most importantly, it needs to throw some intense heat.
    Pictures 1,2 and 3 are the front views of the fire pits and as you will notice they are not square ( each picture is labeled with the dimensions), they don't need to stay like they are, so if you want to make them square you can. Just go by the front measurement. Hopefully you can design something that will fit there needs.
    I am sure that they are going to want electric ignition, and you can try to place the control valves in the front. Also, with the good New York weather, you want want to have covers for each unit.
    Thank You so much for your time and I look forward to working with you to complete this project.

Jai Crandall
July 3, 2010
Now here are the finished pictures on the property. Very nice!
Hey Ed, Here are some pictures of the burners that I installed. They look great and they are very happy with their performance. Also, I believe that I may have a few more people interested in something similar to what I did for Tom Morgan. Have a great forth weekend and I will talk to you soon.

Jai

Here is what was fabricated to replace those old ugly grills.

Jai came up with the Stainless Steel hollow base design and we went to work.

This is a happy ending!

Our propane burners were set to 100,000 btu's each for maximum heat. The glass that we used was Bronze Rust Copper.

The pan burner below was built for Lisa Powell on the east coast. She requested a cover when she was not using it. We tested it with V Blue base glass and V Blue Reflective base glass. If you dream it, we can build it!

Lisa Powell 5

Lisa Powell 6

The next pan (pans burners and baskets) is a ventless conversion. We cut the pan with a 1/2" front and a 2" back. We bent the front to be removable but also hide the controls. We Build to your needs and imagination! Be sure to see our Metal Page!

The next one we had to put in for you to see. The next pan burner is almost beyond belief! The company who builds and sells these is R.H. Something-son. I don't know! They actually tell you this is how it has to be. Don't be fooled by lies. It has to be what you want it to be and look like you want it to look like! This is their "Sand Pan", it looks like a bad cat box to me. But what do I know? There is more on the.

Not only do they have no class or taste, they don't even know how to paint. A bad paint job is just that.
The manufacture didn't even try to conceal the controls whatsoever!

How Not To Do It Page!

The next fireplace is a propane fireplace with a propane pan we built. The colors used were a Gray base glass, Amber base glass and Bronze Rust Copper all mixed on top.

This fireplace and pan reside in Mexico!

Below is the fireplace as it started.

As you can see below is the dog house to allow air to flow to mix fresh air with the propane.

This next fireplace was installed in Mexico by Roy Quick. It turned out amazing. The base glass that was used is. 1/4" Clear Whiteand Scarlett Toppersaccented with Gold on top of it all. The propane pan has a removable front skirt/ cover to conceal the controls.

Installation of a Propane Pan

These fireplace photos were sent to us by a customer in Palm Desert, CA. We will show you step by step on how to install a clean burning propane pan burner. Our customer used Sky Blue base glass.

First clear out your fireplace and paint with stove paint if desired.

Hook up the flex line and check for any leaks before going any further

converting fireplace to propane pan burner

Lava will be provided with your pan. Fill only inside the pan area. Light again and check your flame pattern.

On this application pea-graval was used to fill the backside of the fireplace. Make sure to keep your gravel/lava a couple of inches back away from the front.

This particular propane pan burner used Sky Blue base glass.

Now install your patented fireglass over your pan and everywhere else. Make sure your pilot is still above the surface of the glass or it will not work properly. Controls must also be exposed to operate.

Robert Martinek

Designed specifically for a high-winds area, this custom propane firepit was destined for greatness.

It took some fancy engineering footwork to keep the flame from being extinguished. Here you can see the prototype concept in action with both a cardboard cut-out and wood frame.

Here at last we have the actual glass encasing, and approaching completion, we just need to test how well it will do with some real life winds...

Chuck Krallman

Perhaps not as powerful as Mother Nature herself, but we blasted the fire pit with this industrial fan. And success!

Crated and shipped we finally received the photos from our client a few weeks later. Here is the propane fire pit finally installed perhaps in one of the most scenic spots, the beautiful Virgin Islands. Check out the cool under-lighting Chuck placed beneath the fire pit.

Have a great backyard too? Call us with your special custom project (909) 989-6129.

The next pan burner is a propane pan burner with Skytech Controls. This unit has a standing pilot light with a remote control. To conceal the controls we manufactured a removable lift off front plate.

The next pan is a stainless steel pan we manufactures for our customer in Hawaii. The system that was install was a ventless burner to burn propane with our glass. We will explain as we go forward. On the front of the pan we we bend an open back hemmed stainless steel curtain to conceal the controls but it is still easy access.

This is the ODS (Oxygen Depletion Sensor) it speaks for its self. Here we are burning propane with a Starfire Base glass, please note what a clean burn! We do it right. All of our pans are built for each application and fireplace.

This is the first burner we converted. The Fireplace pictures are using the following fireglass:

The pan below is a brushed aluminum pan with sculpted legs. This pan is for propane and now we offer a simple adapter to convert this to remote control from the back side (battery operated).

The glass installed is a Multi Mix for the photo shoot only. The pan is 2" with 3" legs. This pan will be installed in Cabo San Lucas, Mexico.

alum 14

The stainless steel tray below has Azurlite in the tray. A very clean and simple look.

Here is another example of a pan with Azurilte.

Can you honestly say logs look better than this?

The skirts will hide the the valves and the remote control will be moved to the side of the fireplace. This was a ventless burner the customer sent to us for conversion and they asked for us to add a remote to all 4 ventless burners.

The fireplace below is a ventless self install by Norm. The colors used were: Starfire base, Cobalt Blue Topper, Pale Cobalt Blue Topper, Ice Ice Ice, Pale Gray Topper, Gray Topper Copper Blue Topper.

The several pictures below are of a modern coal basket of stainless steel with legs or it can be suspended with chains. This will also be one of our new product lines available in several sizes and finishes.

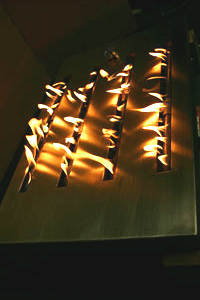

The propane burner below was made to inset flush to the floor with a remote control underneath the pan. The pan sat 5" below the surface so the glass would appear to be just above the surface. The outer ring was bolted down to keep the glass from falling underneath the burner in the event you ever had to service the burner or remote control. The tower you see is actually for the air mixer to draft fresh air to the propane before it burns.

As you can see we drilled it to look like a ribbon burner. This is what was ordered by the customer.

The two pans below are stainless steel and are propane fueled with 415,000 btu electronic ignitions each.

twin propane fire pans 1

The pan burner below is for a 2 sided fireplace and this pan is 25" x 45" and controlled from only one side. It is constructed from 16 gauge brushed stainless steel with 3" x 3" x 3" corner legs.

The picture on the bottom left shows you the thermo-coupler and safety pilot light kit which are UL and CSA approved.

6 pictures below are of an antique coal basket using Bronze, Bronze Reflective and Starfire. The 6 pictures above are of an antique coal basket using Bronze, Bronze Reflective and Starfire

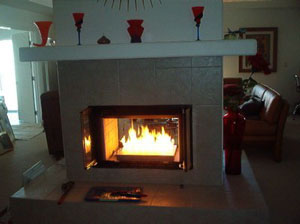

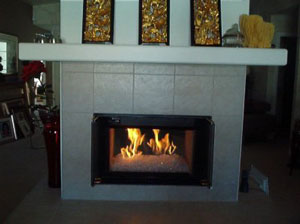

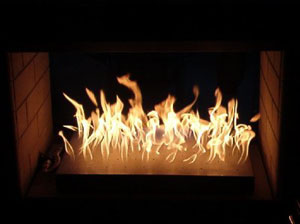

The four pictures below are of a pan in Palm Springs California. This picture is the pan on high with no glass.This is the pan and glass for a full fire effect.The four pictures above are of a pan in Palm Springs California.

Visit Page 2

Other Burners of Interest

Ribbon Burners (Click Here)

Custom Burners (Click Here)

Ventless Burner (Click Here)

Propane Burners (Click Here)

DesignED (Click Here)

Pans Burners & Baskets (Click Here)
