Fire Pits and Fire Tables.

The fire pit below belongs to Mike DeVito in Northern California. When I saw his idea I was excited to help him create something new and wonderful. He took a very old mining cart in his front yard and we helped him convert it to a propane burning fire pit! Turned out pretty cool! Next he is getting a fire pit cover made to cover it from debris and who else knows what.
We use a FPPK (fire pit propane kit) with valves, thermo coupler, pilot light and air mixer. The glass that was use is:
Starfire base glass over a bed of crushed lava rock,
Yellow Amber Topper
Steel Blue Topper
Turquoise Blue Topper
Green Tubes
Copper Ruby Red Topper
Ice Ice Ice
and of course our Diamonds in Clear, Pink, Amber and Blue.
I think this is one really nice idea!
It is all supplied by this 20 lb propane tank
mike 2
Here is the mining cart with the base plate installed with the burners
mike 3
Here you see the controls, air mixer and thermo coupler and pilot light lines under the base plate
mike 4
You can use a larger (3/4", 1" lava) as a base under our 1/4" crushed lava as this will save you a few dollars.
mike 5
Now we pour on the crushed lava to keep the glass from sinking into the larger lava.
mike 6
Add some Starfire
mike 7
Splash a few colors
mike 8
Have your spouse light it in case something should go wrong! (Just Kidding)
mike 9
mike 10
Again here are the first pictures we saw of the mining cart. Great Idea!
Mike, you did a great job!
mike 23
mike 24
mike 25

lava pit

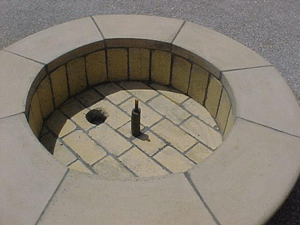

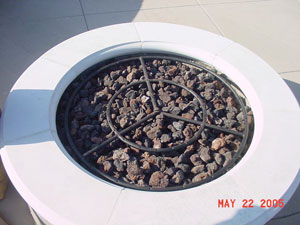

The fire pits shown are in the finishing stages and we should get our glass pictures soon.

1:As you can see there is a solid bottom and a drain.

2: The lava rock goes just below the fire ring and then the crushed lava rock and a thin layer of sand on top of that. Then you pour the glass and your done!

texas pit

texas pit 2

Fire Tables in Temecula, California.

island 1island 2

island 3

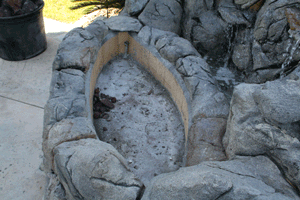

The beginning of a pretty cool man made fire pit

oval fire pit

THESE WILL BE OUR NEWEST FIRE PITS WITH GRANITE TOPS AND OF COURSE GLASSEL IN THE FIRE PIT AND YOUR CHOICE OF COLOR. THESE WILL BE NATURAL GAS OR PROPANE BOTTLE FUELED. WE WILL POST MORE DETAILS IN A FEW DAYS.

FP 1FP 2

FP 3FP 4

FP 5FP 6

The fire pit/ fire table has Blue and Blue Reflective in the center.

This is a 4 piece glass surrounding a fire pit.

table

The pit below has Gray and Gray Reflective


pit 1

pit 2

The pictures below are of a self install fire pit with crushed lava rock and a clear base

1/2" to 3/4" lava rock is use just to the bottom of the ring.

fp 1

If you want a higher center then pour a little more filler on top of the ring.

fp 2

Now we will pour the crushed lava rock (1/4" to 3/8") over the filler as this will stop the glass from falling through the lava rock.

fp 3

fp 4

Finish shaping and pour the glass

fp 5

This is a 36" fire pit which requires 56 lbs for a 1" cover and 80 lbs for a 1 1/2" cover.

We used the 1" method, 56 lbs which as you can see works just fine and no you can't see though the glass.

fp 6

The second step will be to add color and toppers which we should post in a few days and night time pictures with the fire on

fp 7

If you have been told to use more glass than 1" or 1 1/2" of glass over the crushed lava rock, then someone was trying to line their pockets with your money.

The fire pit below has a Clear base with Azurlite and Ford Blue on top. Then it was topped with Dark Red Orange Topper, Yellow Amber Topper and Amber Topping.

mast 1

mast 2

mast 3

A simple fire pit with Azurlite below

azurlite

This fire pit has Clear, Chunky Clear, Starfire and 1/2 Starfire and a water fall going into the fire, pretty cool!

fire waterfall before

fw 3

fw 2

fw 1

The fire pit below was a traditional lava rock fire pit

23

Now filled with lava rock (crushed 1/4" 3/8") over 3/8" 1/2" crushed. Remember the larger is under the smaller to keep the glass from falling through.

45

Above a flex line was installed to raise the ring to the surface. You don't want to leave the ring at the bottom unless you want an explosion or if you want to get rid of the significant other.

Below

Pour more crushed lava to make the desired shape of the fire pit and test burn for flame pattern.

67

Starfire base and a few other colors were added

Azurlite, Scarlet Topper, Red Topping, Ice, Copper Blue Topper, Copper Blue is a chameleon as when it gets hot it turns green and when it cools it turns back to blue!

89

Patterns, can you do better?

Pretty creative!

1011

1213

1415

Great job and very creative.

1617

The 4 pictures are of Multi mix in a simple but nice fire pit. Multi Mix is off of our test table in the showroom which everyone who comes in can sample mix their fireplace glass and after the table fills up we then have Multi Mix. There is usually a lot of toppers and toppings in the Multi Mix.

mm 1

mm 2

mm 3

mm 4

The fire pit below is in Boise! It has

Evergreen and Reflective

Azurlite and Reflective

Ford Blue and Reflective. Looks great.

boise 1

boise 2

boise 3

boise 4

Makes me want to go to Boise!

The fire table below has 1/2 Chunky Clear, Amber and Pink Rosa.

fp 001

fp 002

fp 003

fp 004

fp 005

The fire table below was created in Las Vegas by one of our dealers with a water feature surrounding the center fire.

water 1

The pictures below are from the Lure Lounge at the Wynn in Las Vegas. This was done for Steve Wynn with all Gold. This was taken without the flame on and when we return we will have pictures of the fire pit lite up

Wynn Las Vegas
3131 Las Vegas Boulevard
Las Vegas, Nevada 89109
Phone: (702) 770-7100
Website:
www.wynnlasvegas.com
Another site with a nice picture of the pit (two pictures down from the top).
lure 2

lure 3lure 4

lure 2lure 1

Boise International Airport

Fire Water feature in the lobby/ food court

 koboise 2

boise 1This fire pit featured Starfire surrounded by water. We only did the glass and the burners were by another company.

Three Public Art Projects Selected for Boise Airport

BoiseCity Council has approved the selected artists to design and build an art glass fireplace with Aquatic Glassel, a cast and fused glass wall feature, and a fabric mural for the new buildings of the Boise Airport. Art projects will complement the modern, curvilinear architecture inspired by Idahos natural resources.



Project: Fireplace/Water Feature Artists: Lawrence Ko and Ray Ahlgren from Portland, Oregon and Moderustic of Rancho Cucamonga, California

Budget: $155,000 Site: Food Court in New Terminal Completion: September 2004

Sponsored by: Boises Percent-for-Art, Aviation and Public Transportation Department

A fireplace made of glass (Aquatic Glassel) with a surrounding water basin feature inspired by the stepped landforms of the Boise Riverbanks and nearby reservoir will act as a beacon of light within the new food court area. Sited below a skylight, the fireplace will be a focal point and gathering space for travelers.

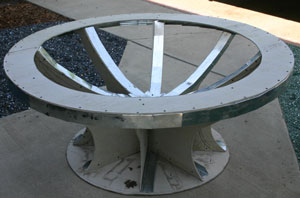

The table below was and has been designed for the Marriott Hotels. This is a proto type which will be wrapped in wire and then coated in a special mix of concrete for use with fire. The table will have a brushed metal edge with lighting on the under side which will be activated just by touch (switchless). The table measures 60" wide, 24" tall and a base of 36". There will be a base door to access all utilities, gas, electric and water.

This table will have a water feature, fire feature and electronics. After installation we will post pictures of the finished product.The first tables are going to Idaho in Boise and other cities in Boise.

marriot 3marriot 2

marriot 1

The fire pit below has a Clear base with 1/4" Starfire and 1/2" Starfire, Yellow Amber Topper. Cobalt Blue Topper and Emerald Green Topper. The earth as the back yard and a lot of friends, wow!

The tables below were made for the Marriott in Boise Idaho
Marriott Hotel Boise Idaho
marriot 1

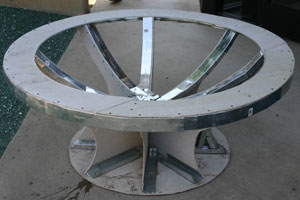

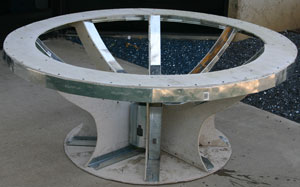

This is a pro-to type fire table that when finished will be wrapped in wire and finished in smooth high heat concrete mix with a 48" fire bowl in the middle. There will be a 6" brushed metal finished edge to cover under table lights. The table is 60" wide and 24" tall. These will be delivered to Boise Idaho, Marriott Corp. We will post finished pictures as soon as we can.
marriot 3
A brushed finish 8" edge was added along with a touch sensor to turn the lights on under the table. It is a 3 position sensor (high, medium and low).
Now the high heat concrete is applied and shaped.
As it turns out there is a 36" triple ring under the lava rock and we are down sizing it to a 24" double ring. As you can see when the wind blows the fire get a little bit close to the edge.
If you had a drink near the edge it would be a little bit warmer now. The sides will be dropped about 3 inches and the center raised about 3" and a 24" ring will finish it off. We will post the pictures of the glass and ICE when it is installed in a few days.

Here are the finished table pictures
We use Clear base with lots of our ICE ICE ICE!

Fire Falls and Real Stone Fire Boxes!

Real Stone Fire Boxes $1050.00

Fire Falls $24000.00

plus glass and shipping

Fire Falls components only 1350.00

Here is our first project in our metal shop. A portable fire pit for propane or natural gas. These will be available in unfinished (as shown) just add your stone, plaster, marble, granite, brushed stainless steel or? The fire pit shown is a natural gas with multi mix glass (about 30 to 40 colors from our mixing counter. The target price will be about $550.00 plus shipping. The size is a 30" x 30" x 12" tall. The fire pit shown is a www.firescapes.net fire pit. We will offer any size as a custom fire pit for natural gas or propane. Our custom fire pits are single wall construction with a solid bottom drop in pan.
new pit 1new pit 2
new pit 3new pit 4
new pit 5new pit 6
new pit 7new pit 8
new pit 9new pit 10
new pit 11new pit 12
new pit 13new pit 14
The fire pit/ table is at the Roxbury Hotel and we will show you the progress here from beginning to end. This was a propane installation with our FPPK burner. The colors used were:
1/4" Starfire, 1/2" Starfire, Gold, Lime Green Topper, Pale Olive Green Topper, Olive Green Topper,a little bit of wood and tile and here you go!
roxbury 4roxbury 5
Above shows the framing and the gas line coming in.
Below shows the pipe coming out of the floor and the thermo-coupler on the glass next to the igniter
roxbury 6roxbury 8
roxbury 7
roxbury 7a
roxbury 2roxbury 1
roxbury 3
Roxbury Hotel, a cool fire pit!



The first project we are working on is the Maryland Hotel (Ivy Hotel now) Roof Top Fire Pit in downtown San Diego, California on the 7th floor roof top! www.IvyHotel.com
It measures 60" across, 30" tall and 144" long!
The fire table/ fire pit will and a 5' x 12' surface top in smooth concrete with a 16" x 120" stainless steel fire tray of to one side. We will post pictures as the project grows on.
Te fire pit is constructed with a new flexible track and about 3,000 screws, 240' of galvanized channel, 450 welds, 600 lbs of GFRC/ Wonder Board and coated in smooth texture concrete.
sd 1sd 2
sd 3sd 4
sd 5sd 6
sd 7
This was just before delivery, dry fit.
sd 17
sd 18sd 19
sd 20sd 21
Once on the roof top the two halves were attached and the pan was installed
sd 8sd 9
There were two burners and two controls installed
sd 10sd 11
sd 12sd 13
sd 14sd 15
The glass is going in after the position of the fire table was adjusted. Pictures will be here soon!
If you look at the walls of the roof top you can see most of San Diego.
sd 16
The table now has had a different coat of colored concrete applied and a granite top. The glass that is installed is Starfire. The Hotel plumber was not very careful as he mixed the lava with the glass and now it looks like salt and pepper. We will be taking a trip to San Diego to fix this mixing issue because we would like to post finished pictures of the fire table burning at night time.
ivy 1ivy 1a
ivy 2ivy 2a
ivy 3ivy 3a
Below is just a nice propane fire table with Multi Mix
bert 1
The fire bowl below is one of our newest products/ projects. The first one went to Ramsey Burton in Kentucky of which after he installs it is his ten foot granite table we will show you pictures of his project. This is a 48" spun aluminum bowl with a 24" center bowl with a water feature with fibre optics. The outer bowl has a stainless steel ring for a full surround fire feature. So here are the first proto-type pictures from the shop.
f1f2
f3f4
f5f6
f7f8
f9f10
These pictures show what happens when it gets darker as the fire is attracted to the water. Opposites attract, maybe this is why most of us are still together. The question is" Who is the FIRE?"
f11f12
f13f14
No we add the fibre optics in the center bowl.
f15f16
f17f18
f19f20
The glass we used was our Multi Mix. At least 80 colors are showing.
f21f22
f23f24
f25f26
f27f28
f29f30
f31f32
f33f34
f35
You can change the water head for a different effect.
f36
f37f40
f39
f41
We are going to be showing this for the first time in Palm Springs on December 06 2007 on Thursday evening at the Village Fest. This is just a base you would build your table around and we can add any feature or effect you would like. We will be adding several features to this fire/ water feature in the next few weeks. We will be posting pictures from the Village Fest after the first showing. If you dream it, we will build it.
The fire pit below is a 36" round stainless steel pan with a 24" stainless steel ring. The glass is Bronze Rust Copper. This pan can easily be adapted for propane as well.
pan 1pan 2
pan 3pan 4
pan 5pan 6
pan 7pan 8
pan 9pan 10
The fire pit below was designed by Dwayne in Arizona at www.artistichomesolutions.com
We used Bronze glass and stainless steel burners in this fire pit on the roof top. Great design and view.
d 1d 2
d 3d 4
The table below was built for Jim Shaw in Riverside California. The stainless steel tray with stainless steel burners was build to Jim's specs. We used Bronze glass, Bronze Reflective glass and Pink Diamonds.This was a natural gas burner and could be easily converted to propane.
fire table 1fire table 2
fire table 3fire table 4
fire table 5fire table 6

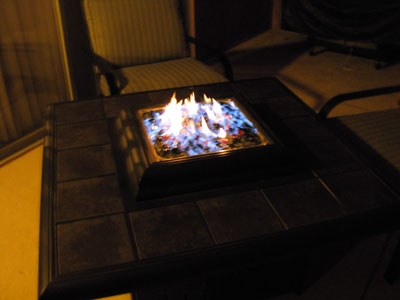

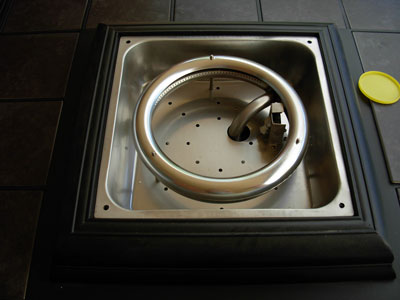

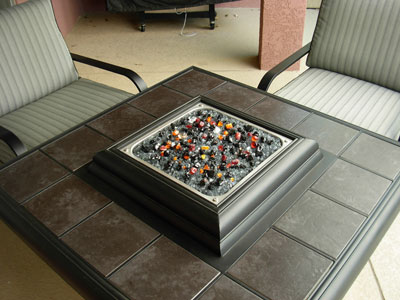

The fire table below is a propane model and is a very easy conversion. Just call and we will convert it for you and or show you how. The glass used was a layer of black lava under the base of Grey glass, Black Luster Topper with Copper Ruby Red Topper. This fire table belongs to Eric Bergman in Palm Springs and he loves it.

eric 1eric 2

eric 3



The fire pit below is a failed attempt of a propane conversion without our help in the beginning. You can't just burn propane! If you try this, this is what it will look like. You need to calibrate the amount of air to propane or it will back fire, burn black or explode! We recommend a thermo coupler, air mixer/ venturi along with several other important factors. We won't tell you who tried this but we will tell you we did fix the issue and now the customer is very happy. We did use Azurlite with Azurlite Reflective.

stan 1stan 2

stan 3stan 4

stan 5stan 6

stan 7stan 8

stan 9stan 11

stan 12stan 13



Below we have the fire pit that we installed for Reba! In Nashville Tennessee.
reba xmas cardrebanumberone
Here is her stainless steel fire pit pan as we manufactured it for propane with electronic ignition.
Below is a 36" aluminum pan burner for propane with a 3" outside lip. These can be made to fit any fire pit, fire table of fire fit for natural gas or propane. We can build anything! This pan has a thermo-coupler for safety and air mixer built in to eliminate soot.
fire pit 4fire pit 3
fire pit 2fire pit 1
Now here is the fire pit with Evergreen, Evergreen Reflective, Blue Green and Blue Green Reflective installed. We also drifted withe the camera and took a few shots of the back yard on the river in her back yard. Enjoy. You can also visit www.Reba.com for some real cool information and pictures.
reba 1reba 2
reba 4reba 5
reba 6reba 6a
reba 7reba 8
reba 9reba 10
reba 11reba 12
reba 13reba 14
reba 15

The fire pits below are located in Laguna Beach California at the Cliff Restaurant

5775 South Coast Highway Laguna Beach 92651

We used a Clear base with Azurlite on top with Azurlite Reflective. Then we added Emerald Green Topper and Copper Blue Topper which turns green when it gets hot. Then it turns back. Because the chrome is seen when its cold and the copper changes the color to green when it get 500 degrees.

cliff 7

cliff 8

cliff 9

cliff 10

cliff 11

cliff 12

cliff 1

cliff 2

cliff 3

cliff 4

cliff 5

cliff 6

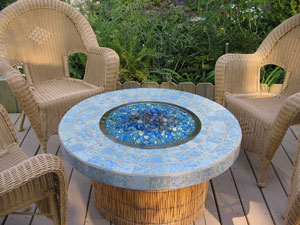

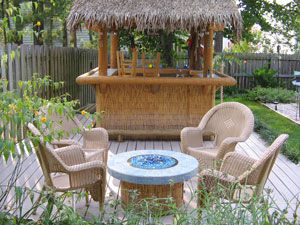

he fire pit below has an Azurlite base with Azurlite Reflective on top. Then topped with Pale Lime Green Topper and Aqua Marine Topper.
table 1
table 2

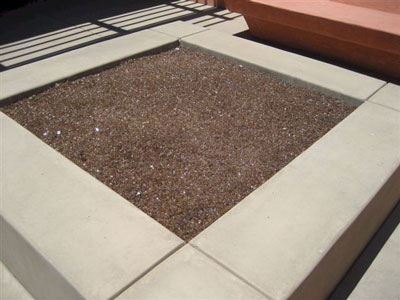

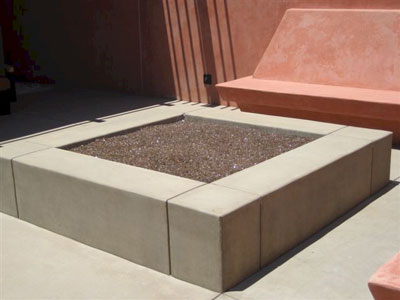

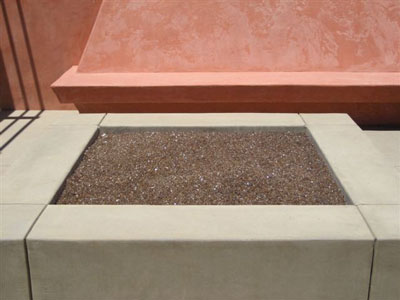

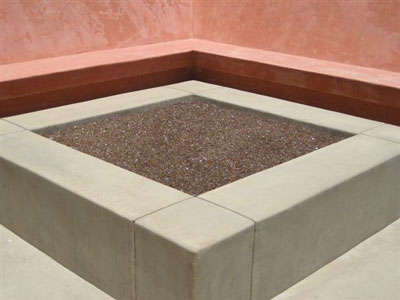

The fire pit below has Bronze Rust Copper and a hint of Bronze added
brc 4
brc 3
brc 2
brc 1
The fire pit below is in the Palace of Qatar and this was commissioned for the King of Qatar. The fire pit is a propane/ butane fueled fire pit and it was installed by Gasco of Qatar. They didn't understand the glass so they opted to use lava rock. Now they (the King) have ordered the glass and if we can get the pictures we will post them.
qater 2
We did propane for the King and there are no issues! Awesome marble!
qater 3
qater 4
The fire pit below was built by Charlie Helms in North Carolina using our FPPK (fire pit propane kit) burner. This is a propane fire pit with a lava filler. Charlie is now ready to order the glass. Check it out, great job Charlie!
charlie 1
charlie 2
charlie 15
charlie 8
charlie 9
charlie 10
charlie 11
charlie 12
The fire pit is covered to protect it from whatever may fall. Great job!
charlie 6
The fire pit below was build by Mike Phillips ( a customer). First he ran a propane line to the fire pit area and then blocked his fire pit into shape. We use a FPPK (fire pit propane kit) in an aluminum pan 24" x 24" with a double 18" double stainless steel ring.The glass that was used was Gray with a Gray base and Gray Reflective on top to add sparkle.
mike phillips 1
Below you can see the placement of the thermo coupler and safety pilot light used for propane.
mike phillips 2
Below on the right side the controls were installed in the bricks.
mike phillips 3
mike phillips 4
The fire table/ fire pit below is in Texas and was designed with our glass in mind to be installed and it has a Black base,
Purple Topper,
Black Luster Topper,
Rhubarb Topper,
and Bronze Topper.
richard 1
richard 2
The fire pit below has a Clear base glass,
Cobalt Blue Topper,
Copper Blue Topper and
Azurlite base glass for one very nice fire pit and back yard!
fire pit 3
fire pit 2
fire pit 1



The Terra Cota pot below is fed by natural gas and was topped with a 1 1/2" layer of Clear over a bed of crushed lava rock.

paul 1

paul 2

The gas line was drilled from the bottom of the deck and the pot was placed on top

paul 3



The collection of Fire Tables below are from D Cook, one of our dealers and a manufacture of some really nice high end fire tables and planter boxes in any and all metals. Tell us what you think!
dci 2
dci 3
dci 4
dci 5
dci 6
dci 7
dci 8
dci 9
dci 10
dci 11
dci 12
dci 13




The fire pit below is one of several Katrina builds in the San Francisco Bay area. She will build anything thing you can imagine in here field of design. Please contact us so we an put you in touch with Katrina.
The fire pit below she used a Clear base glass.
katrina 1
katrina 2
katrina 3





The fire pit below has a Black base with Black Reflective on top.Not too great of a fire pit picture but you get the idea. Even with Black as a base glass you will only see the color of glass under the fire. The flames don't change color nor does the glass, but the glass is what will reflect the light at night.

rw 1


The fire pit below is in Newport Beach California at Newport Coast Development. We replaced a hot spark ignition which did not work, with our IPI (intermittent Pilot Ignition) electronic ignition system.  The fire pit was 18" deep and 48" across. This is what was installed:
1 IPI Electronic Ignition for Natural Gas connected to a 1" gas line
1300 lbs crushed lava
144 lbs Clear base glass for a 2" fill over the crushed lava
36" triple stainless steel burner ring
20 lbs Clear Topper
20 lbs Cobalt Blue Topper
20 lbs Copper Blue Topper
We will show your from beginning to end:
newport 1
Looked pretty nasty  when we got there
newport 2
newport 3
We started to pour the crushed lava with our electronic ignition being raised to the surface by the lava rock
newport 4
newport 5
We built a double box to protect the equipment in the fire pit as well
newport 6
The ring is now installed
newport 7
The electronics
can be accessed if ever there was a failure of the equipment and you can access it from the surface. Before the equipment was 20 inches below the surface, not a very good idea!
newport 8
Now we poured the 144 lbs of Clear base over the crushed lava
newport 9
We only did the fire pit, not the view. That came with the home. But one very impressive view!
newport 10
newport 11
Then we spread the Clear Topper, Cobalt Blue Topper and Copper Blue Topper over the Clear base
newport 12
newport 13
newport 14
newport 15
newport 16
newport 17
newport 18
As you have looked at all of our pictures we would like you to know we use Crystals as our Toppers and Toppings. We don't use "Recycled" glass, ever! We are actually the only company that produces Crystals for fireplace and fire pits.
newport 19
newport 20
We tried to get pictures of it burning, but the flames just didn't show. Look above and you can see a flicker in the daylight. Actually the flames were over 16" tall but you can't see this in daylight.The contractor will get a few night pictures when they and if they can.
newport 21


On this page (as if you needed another page) We are going to show you how to build a basic fire pit for your deck/ back yard.
This was built by Glenn Harvey of British Columbia.
This first picture is the frame he had started with.
You can make one from metal studs, aluminum studs, etc. Anything non flammable.
GlennHarvey 1
Wrap it with wonder board or durock/ cement board.
GlennHarvey 2
Below you can also wrap it with wire for better adhesion to the backer board.
GlennHarvey 4
This fire pit was natural gas. We also manufacture the burners for propane. Well, we are the only ones who actually manufacture propane burners for your projects.
Below you can see the gas connection coming up from the deck. Glenn used a pan but he also could of used an aluminum/ stainless steel base plate as well.
GlennHarvey 3
The stacker stone is now being applied.
GlennHarvey 5
As you can see below the trimming valve is installed on the side. You would be surprised on how many plumbers don't think of this little detail, a valve to turn it on or off. I have seen the valves installed inside of the pit or not even at all. You also need to be careful as to not have a gas line installed that is too small for the application.
GlennHarvey 8

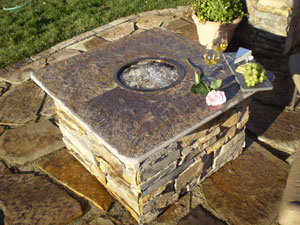

Now the stone and cap are done, great and simple job!
GlennHarvey 6
GlennHarvey 7
Below you an see the larger filler lava rock was installed.  If a flat plate were to have been used you wouldn't need the larger filler lava rock base.
GlennHarvey 9
Below our crushed lava was used to cover the larger lava rock to insure the glass does not fall through. This makes an even base. What ever shape you make the lava is the shape the glass will take.
GlennHarvey 10
Below we installed Water White base glass (32 lbs) for a 1 1/2" cover!
GlennHarvey 11
The stone on the side of the fire pit used was to match the stone on the house as well. Looks awesome!
GlennHarvey 12
Below is just the Water White before the colors were added.
GlennHarvey 13
The colors that were added are as follows:
Azurlite and Azurlite reflective for the sky area.
Brilliant Yellow R20F4 Topper for the sun center
Scarlett G072F3 Topping for the suns rays
Orange R140F4 Topper for the ring around the suns center
Emerald Green 1417 Topping  for the bottom trees/ grass?
Deep Blue 2507 Topper mixed in around the Azurlite in the sky area.
GlennHarvey 14
If you notice below the center of the sun, it changes when it get hot! This one of our chameleons  that change when the glass gets hot. If you look real close at the Orange Topper (next to the suns center) as well, it turns a bright cinnamon red when it get hot also! All of our chameleons will be posted when we get a chance. This is just another one of our product lines that we have not had time to further promote.
GlennHarvey 15
Above is the fire burning and
below the fire was just turned off.
Glenn spent a few hours placing all of the glass to make this very cool scene. So don't just think you can just throw it on and it knows were to go. Very creative!
GlennHarvey 16

 The fire pit below is a custom fire pit in Covina California with one really great back yard design. This back yard was designed for great parties. If you look and see the glass wall with the etching you will also see the fire pit in the back ground.
The glass that was used:
Gray and Clear Pyrite base glass
Gold Reflective
Copper Blue Topper
This is one really good looking table.
compass fire pit 2compass fire pit 3compass fire pit 4compass fire pit 1compass fire pit 5
compass fire pit 6compass fire pit 8




































































The fire pit below had the wrong type of burner let alone the location of the burner.
The burner must be with in 2" of the ultimate top of the surface of the fire pit. Filling the pit with gas and then trying to light it? Nothing good can become of this. We installed a #304 stainless steel "H" burner, covered it with crushed lava (1/4" / 3/8") over the larger lava rock. This is what keeps it from trickling to the bottom. Them we topped it with Starfire base glass. Then Eric is trying to decide which colors/ topper he should add if any at all.
Eric Tufts 1
Eric Tufts 2
Eric Tufts 3
Eric Tufts 4
Eric Tufts 5
Eric Tufts 6
Wrong type of burner above.
Our "H" burner below. Watch the flame pattern as the crushed lava covers the burners.
Eric Tufts 7
Eric Tufts 8
Eric Tufts 9
Eric Tufts 10
Eric Tufts 11
Eric Tufts 12
Eric Tufts 13
Eric Tufts 14
Now for the big decision, more colors and which ones?
Eric Tufts 15







The fire pit below was built by Mark Showalter in Washington state.

He used:

Gray and Gray Reflective base glass,

Gray Pyrite,

Copper Ruby Red Topper,

and Black base glass mixed in.

This is the stone pot with the bottom up.

Mark Showalter 1

Mark Showalter 2

Mark Showalter 3

They drilled for the trimming valve to be installed.

Mark Showalter 4

Mark Showalter 5

Mark Showalter 6

Mark Showalter 7

Mark Showalter 8

Mark Showalter 9

Mark Showalter 10

Mark Showalter 13

Mark Showalter 15

Mark Showalter 16

Mark Showalter 17

Mark Showalter 18

A picture is worth a thousand words, and here you have it.

Mark Showalter 19






The fire table below was built by Christina "Stina" in the San Francisco area. With a little ambition, imagination and our help, she now has one very nice fire table.

STINA 1

Here is where it started. She made  a template of the pan and where the mounting tabs would be located. Then we built the aluminum pan and propane burner for Stina to install.

STINA 2

Below is how the teak table started. We just brought it into the future.

STINA 8

STINA 7

Below the pan was installed with Galaxy Green base glass.

STINA 3

STINA 9

Below you can see the top installed and what a difference.

STINA 13

Below is her wonderfully finished project, Great job Stina!

STINA 14



The fire pit below is going to be installed in Sacramento on 11 14 09 for the Yard Crashers/ DIY/ HGTV show. After it is and has been installed we will post pictures on the Yard Crashers page. In the mean time here is the how to and why. We can build any size, shape, design feature you desire. We build to your imagination.

Below is the catch basin to hold the water for the feature



DIY PAN 1

Above you see the auto fill?

Below the water pump is now install below.

DIY PAN 2

Below the top pan is in place for testing with the fire and water bowls in place

DIY PAN 3

DIY PAN 4

Below the stainless steel ring is installed.

DIY PAN 5

Below the glass (Bronze base glass) has been installed and the lights turned on.

DIY PAN 8.

Below you can see the pump has been turned on.

DIY PAN 9

and now the fire.

DIY PAN 10

We placed a card board template to replicate the table top to conceal the lights as well.

DIY PAN 11

Now we add color to the water!

DIY PAN 12

DIY PAN 13

Here is the feature exposed with the blue water. You can change the water to any color you like.

DIY PAN 14

DIY PAN 15

This feature is only 6 1/2" tall. You can mount this under the table top and keep it only an inch or so above the surface of the table top.

DIY PAN 16

So let's change it to red water and add Starfire base glass.

DIY PAN 17

DIY PAN 18

DIY PAN 19

DIY PAN 20

DIY PAN 21

Remember, we build to your imagination!

DIY PAN 22

The finished pictures will be posted on the Yard Crashers page when this project is installed after 11 14 09!



"CLICK HERE to see the "Yard Crashers" Sacramento show!" with this feature installed.

The Fire Table below was installed in Sacramento California by and for Yard Crashers. The finished pictures will be posted on the Yard Crashers page when this project is installed after 01 20 10. This episode was to be labeled "Outdoor Shower" on HGTV and the DIY  Network but somehow it was labeled "Modern Fire Wall" go figure? It is episode 302 on HGTV or DIY  Network. The details will be shown on the DIY page when and as soon as we receive them from the producers. We built a square aluminum pan with an 18" double stainless steel ring and used one of our FPPK kits for the propane fuel. This will be shown on the episode coverage as well. Here are the pictures of the back yard and the finished fire table using propane.

Yard Crashers Shower 4

Yard Crashers Shower 5

Yard Crashers Shower 6

Yard Crashers Shower 7

Yard Crashers Shower 8



The fire pit below is in Palm Springs California. We use Azurlite Fireplace Glass and a crushed lava filler underneath. There were a few issues which we resolved.

First issue: Don't use polished Mexican Pebbles as they will chase you across the  yard.
Palm Springs 1
Palm Springs 2
Above, second issue, the ring could of been bigger as we installed a triple 30" stainless steel rind.
Below, third issue the plumber installed a 3/8" reducer, why? :-~ The gas comes is with 1/2", the ring is 1/2" so the plumber installed a 3/8" reducer in between the gas supply and the ring. Why in the heck would he do this? Anyway we just installed a 1/2" flex line and the pressure was back and fine.
Palm Springs 3
Palm Springs 4
Cover the wrong material with at least 1 1/2" to 2" of crushed lava.
Palm Springs 5
Palm Springs 6
And pour the Azurlite Fire Pit Glass
Palm Springs 8
Palm Springs 10
Palm Springs 11
We never were sent pictures of the fire pit burning, but we did test it during our installation.
Palm Springs 12

The fire pit below has V Blue, V Blue Reflective and topped with Cobalt blue Topper

John Amiee 1

John Amiee 2

John Amiee 3

John Amiee 4

John Amiee 5

John Amiee 6



The fire pit below was built to the customers specs. It was 48" round, 10" tall with 8" legs and constructed from 1/4" aluminum. Then powder coated to match the customers request. We will fill in the details as we go.
New York Fire  Pit 1
New York Fire Pit 2
New York Fire  Pit 3
Above you can see the cross grid to support the false bottom.
New York Fire Pit 5
Above you can see the false bottom making it possible to fill it with a 2" fill over the ring.
New York Fire Pit 6
A custom 42" stainless steel burner had to be built.
New York Fire  Pit 7
New York Fire  Pit 8
The center leg was for the gas and electrical for the electronic ignition
New York Fire  Pit 9
Hopefully we will get pictures of the fire pit installed on top of the water fall in New York.



.
.
Click here to go to our "HOW MUCH DO I NEED PAGE"
.
Do you need a Fireplace Pipe Burner? "JUST CLICK HERE"
.
Our Crushed Lava can be purchased on line, "JUST CLICK HERE"
.
Our Fireplace Paint can be purchased on line "JUST CLICK HERE"
.
Play or Filler Sand can be purchased locally as this will save you shipping.
.
or call us at 909 989 6129 or e mail us at Ed@Moderustic.com
.





Has anyone ever told you "Nice Logs" ? Nooo, I don't think so.
"Utility Patent Applications now Published as of June 2005 and May 2006"

We are still in Patent Pending

We take pride in our new product and take Patent Infringement very seriously! There are several companies who have copied our product and or process and they will be in for a surprise when our patent number becomes available to the public.



Please take note that in the United States reasonable royalties begin to accrue when a
Patent publishes, (as ours has in June of 2005 and in May of 2006) depending on the state of the patent application at the time of issuance.
Please take note that we do intend to enforce our patent rights to the furthest extent
of the law upon issuance of our patent.

Patent publication available on request. Don't be fooled by look-a-likes or overly expensive imitations, ask for Aquatic Glassel by Moderustic. Be sure to get a price quote and you'll see the difference.

We are now designing a national catalog which should be 30 to 50 pages! We are asking for your help in acquiring pictures of fireplaces and fire pits for our catalog that our glass was used in. We would also appreciate your comments and or feed back as well. Please send your e mails and pictures to:
Ed@Moderustic.com
Jaunzemis@msn.com


Copyright 2005 www.Moderustic.com All Rights Reserved.
Copyright 2005 www.AquaticGlassel.com All Rights Reserved.

Click here to view our website's sitemap!

Any questions please contact us at:
Phone: 909 989 6129


Fax: 909 944 3811
E Mail: Ed@Moderustic.com

Stop by and visit our Showroom in Rancho Cucamonga:
Moderustic Inc.
9467 Ninth Street #D
Rancho Cucamonga, California 91730

CSLB# C-17 693887

We are 2 miles north of the Ontario Airport
Hours: M-F 8:00 to 6:00 Every Saturday 10:00 to 2:00.
After hours appointments available on request.
If you're coming late, please call and we will wait. We usually stay until 6:00 pm.

We at Moderustic and Producers of Aquatic Glassel and the inventors of Fireplace Glass, are proud to offer the consumer over 500 products and we know we have spawned a few undesirable competitors in the market place but we continue on our quest for betterment and greater success through you the customer. We have been criticized for offering the crushed lava rock and or filler method by all of these other companies. But we understand the wants and needs of the customer, you. Spend less and get more. Some of these companies are telling the consumer to not use filler, why? They only want to fill their pockets with your money and we want you to save money. We know we have devastated these companies with our filler saving methods but it is with the best intentions for the consumer in mind. We have refused to sell to these individuals and companies because of their business practices. So please understand their intentions when they want you to purchase more glass. We take pride in our new product and take Patent Infringement very seriously! There are several companies who have copied our product and or process and they will be in for a surprise when our patent number becomes available to the public and they will find their business in ruin. If you are a previous or new customer and would like to add your comments on these companies or your experience, we will post a testimonial page for these to be read by the public. If you would like to post just your comments, they are welcome as well. Again, we work for the consumer and not the competition.



Moderustic Return Policy


Moderustic Inc Return Policy and Legal Notices
•    Returns must be made within 30 days of purchase with exceptions only by management.
•    Returned products must be unused and/ or unmixed.
•    Returned products must be packaged well to avoid damage in transit, OR YOU WILL BE RESPONSIBLE FOR THE DAMAGE.
•    Returned products that are damaged in transit will not be able to be refunded.
•    Refunds will be made towards product cost only.
•    Refunds will not be given for non-product labor costs (consulting fees, installation fees, labor, shipping etc.)
•    Restock fees may apply depending on which items are being returned. (10% to 70%)
•    Refunds are processed after customer’s review and acceptance of refunded amount.
•    Refunds take approximately 1 week for processing less any customer delays.
•    Any return must have a return authorization in writing by the management and this will be noted.
•    There are no returns or refunds on any custom metal products what so ever!
•    We are not responsible for local codes and or if any of our products are or are not approved. Please check with your local building department or governing agencies for proper approvals before purchasing. Custom built or designed items are not returnable for any reason.
•    Any Designs, Drawings, PDF Files, Ideas, Pictures, Attachments, Renderings, Facsimiles, Faxes, Blue Prints, Copies, Documents and even copy written materials once sent to Moderustic Inc, Ed Jaunzemis, Aquatic Glassel or any employee of Moderustic Inc becomes property of said company to use, distribute, copy, reproduce, manipulate, recreate, modify, advertise, promote, lay claim to and or use in our discretion as we need.  If you do not agree with these terms then please do not send us anything. Our intentions are to create for you the "Customer" and it is our vast collection of material that will spawn an idea for you to have us create something for you. If we should create something/ anything for you that is one of a kind, you do not own any rights to this or there idea or ideas, product or concept in any way shape or form.
•    EXPEDITED SHIPPING NOTICE
(i.e. 2/ 3-Day Select, Next Day/ 2nd Air, etc.):
If UPS/ FedEx fails to deliver your packages within the expedited delivery time frame you have chosen, they can or will refund a PORTION of the delivery charges.  We will pass 100% of the UPS/ FedEx refund back to you.  The amount refunded is determined by UPS/ FedEx and will be less than the original expedited shipping charge that you originally paid. This is due to surcharges and fuel charges. We do not determine what will be credited back.



Moderustic Inc
Ed Jaunzemis, President
9467 9th Street Suite D
Rancho Cucamonga, California 91730
Phone 909 989-6129 Fax 909 944-3811
